Description
Ceramic Plunger Pump Filling Machine
Product introduction:
The single-head valveless ceramic plug quantitative pump is equipped with a ceramic plunger structure and a progressive motor. By finely adjusting the size of the pump cavity and the motor speed, the filling volume and filling speed can be precisely controlled.
Application:
It is suitable for industries such as medicine, food, chemical industry, cosmetics, and laboratories that require net weight filling.
Features:

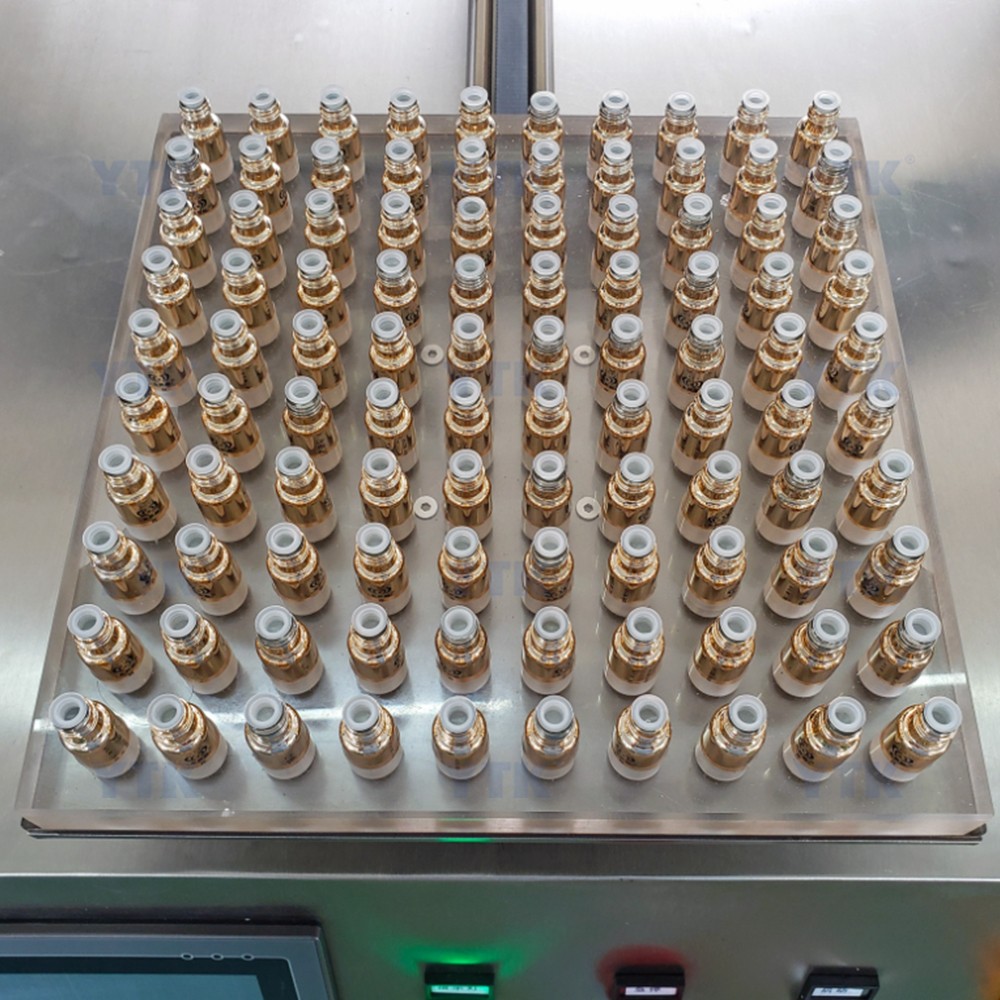

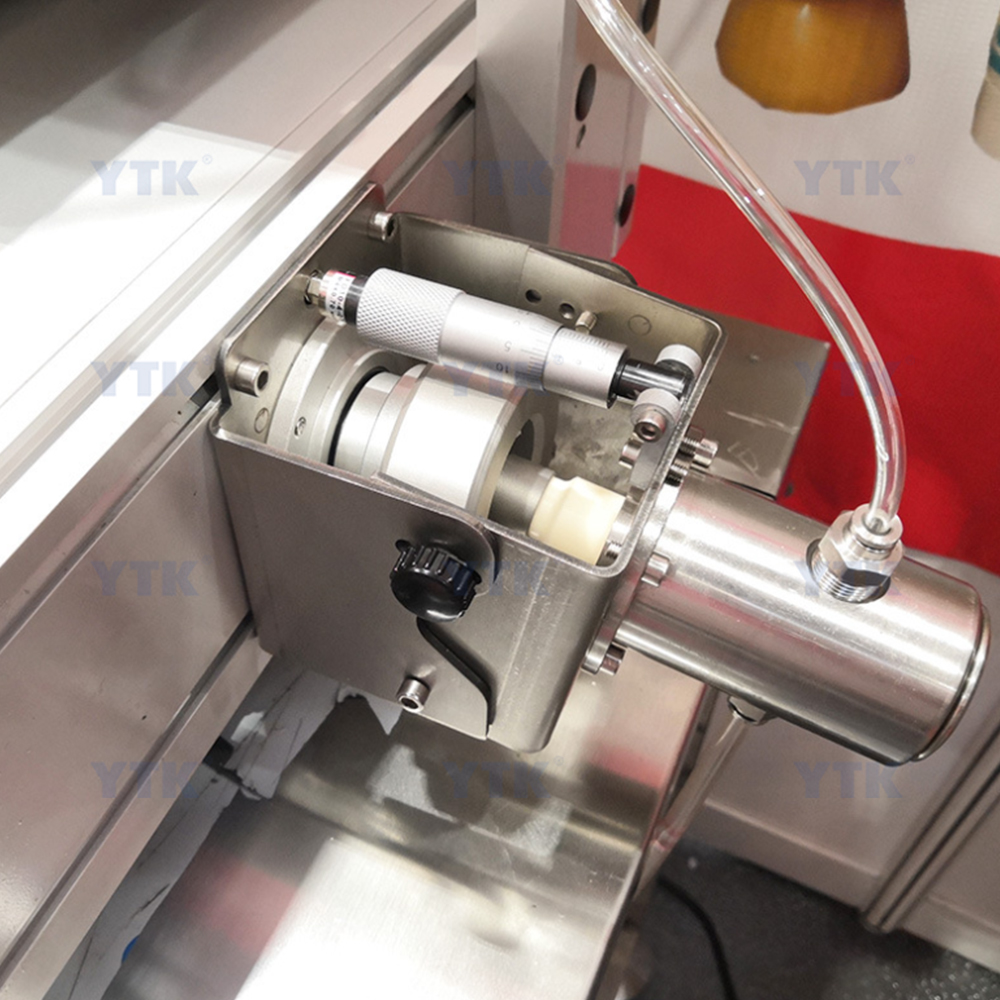

Equipped with X, Y, Z, three-axis mobile filling efficiency, suitable for whole plate filling, more suitable for special-shaped bottles. The unique pump head design makes cleaning and installation very simple, compact and easy to carry. Equipped with three-axis movement, it can experiment with automatic filling, and the filling efficiency is higher. Better for bottles that can't stand PLC man-machine interface and foot control, easy to operate. The machine is exquisite and compact, easy to carry.
Technical Parameters

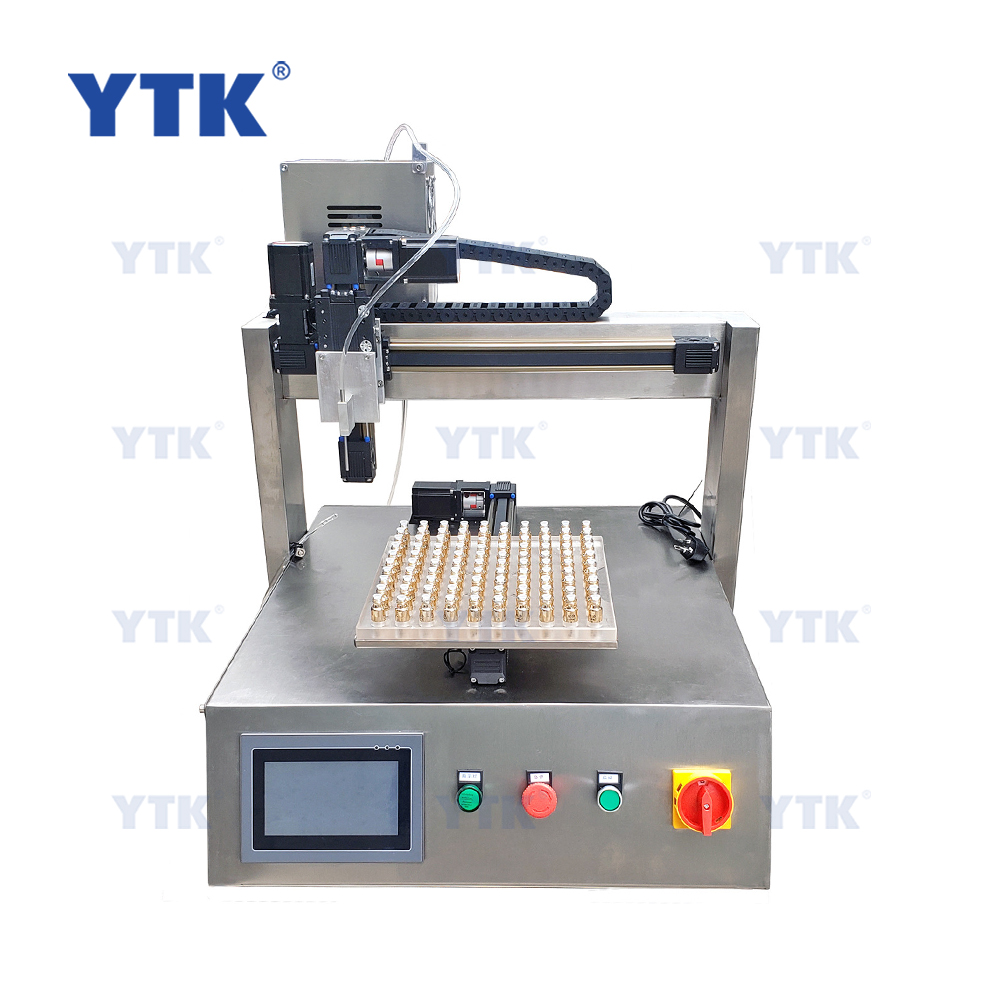

Name: Single-head three-axis ceramic plunger pump automatic filling machine Model: YTK-011F
Power supply: AC220V 50HZ
Power: 200W
Filling volume: Min 0.1ml
Filling accuracy: 0.02ml
Hose diameter: 10~50mm
Speed: 30-100 pcs/min
Workbench size: 300*300mm (can be customized)
Machine size: 680*500*630mm
Net weight: 46KG
