Product Description

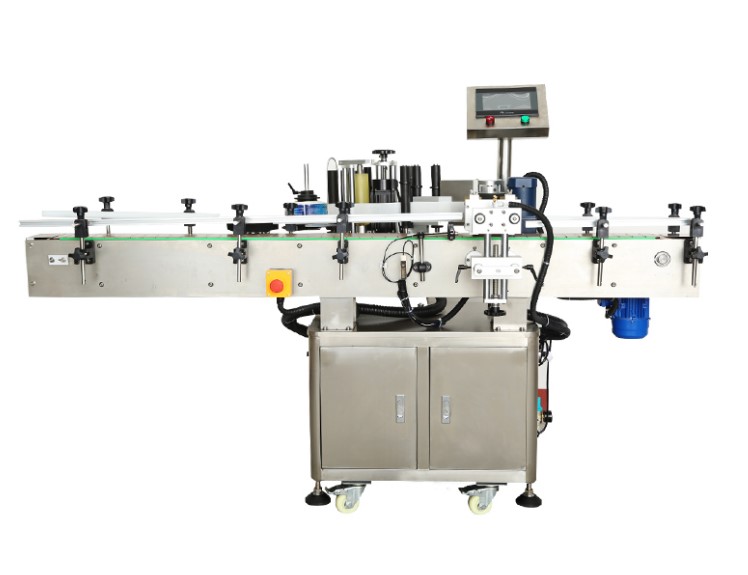

YTK-260 automatic vertical round bottle fixed point rotating labeling machine can label for small label, wrap around label and front back label with the distance between labels adjustable.
Product Parameters
Usage Instruction
1.Make sure the bottle sensor and label sensor are working.
2.Adjust the bottle label speed, roller speed, conveyor speed to a rather medium speed. Labelling speed is adjusted on the touchscreen, the other two are adjusted by physical knobs.
3.Set the Selection time delay properly by observing how long the bottle takes get to the rolling station after it’s detected, usually it’s around 0.5 second. This setting influenced by the conveyor speed, if the conveyor speed is very slow, this will be longer.
4.Next is the Out of the delay, usually this delay time is a little bit ahead of the Selection time delay, because you want the label to just start dispensing before the clamping action is nearly complete.
5.Then the Scaling time, this is how much time the roller will be rolling on the bottle, it’s always greater than the Out of delay, otherwise you will find when the roller is rolling with no label coming out. If the bottle takes 1 second to finish labeling and rolling, and the Out of delay is 0.5 second, then for the best efficiency, this one will be 1.5 second.
6.The Delay stop mark, this is usually set to 0.5 second, if you find it sticks out too much and create wrinkle on the bottle, then you should decrease it.
Finally, Time interval between, make sure to change Scaling time if you set this one other than 0. The Scaling time is usually doubled if you want to stick two labels on
Application
Suitable for all kinds of round bottles, cans, jars, also applicable to both only one label and fromt & back labels.
