Description
Introduction:

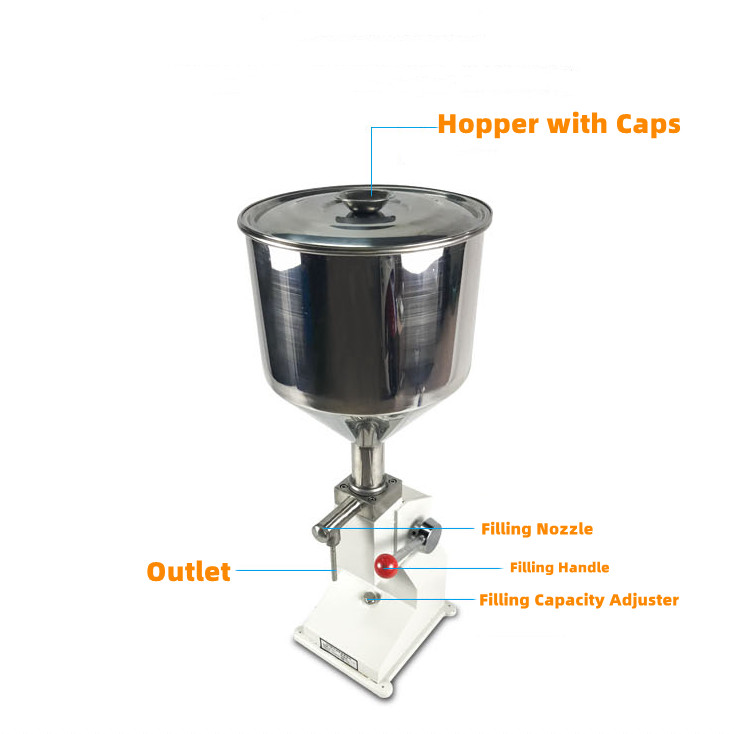

The A03 paste filling machine is operated by manual power, giving you an efficient and accurate filling.It comes with a food-grade 304 stainless steel hopper, which is easy to disassemble and clean .Designed with a high-quality anti-drip filling nozzle made of premium steel that is resistant to wear and high temperature. Filling volume and speed can be controlled manually through two switches.Adjust the filling volume, then use the handle switch to control and finish the filling. This manual filling machine is widely used in the pharmaceutical, cosmetic, pesticides, and other special industries, perfect for liquid and paste with excellent liquidity.
Technical Parameters
Filling Materials
Paste liquid with good fluidity(cosmetic, cream, shampoo)
Model
A03
Filling Range
5-50 ml
Capacity of Hopper
22 lbs/10 kg
Height range
7.87"/200 mm
Bottle diameter range
3-15 mm
Filling accuracy
±1%

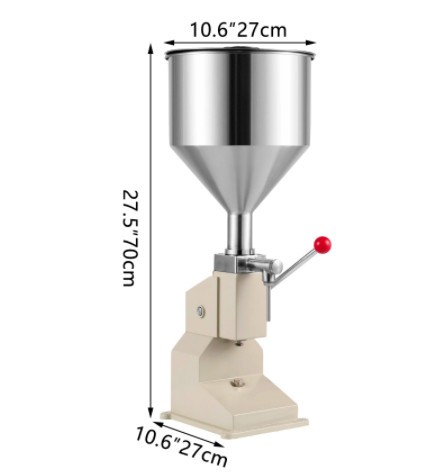

Machine size
10.6 x 10.6 x 27.5 inch/ 270 x 270 x 710 mm
Packing size
13.4 x 13.4 x 31.1 inch/ 340 × 340 × 790 mm
Net weight
28.5 lbs/13 kg
Package Content:
1 x A03 Manual Filling Machine
1 x Nozzle(Inside diameter 6 mm, outside diameter 8 mm)
5 x O-Rings
1 x Screwdriver
1 x Guide Manual
