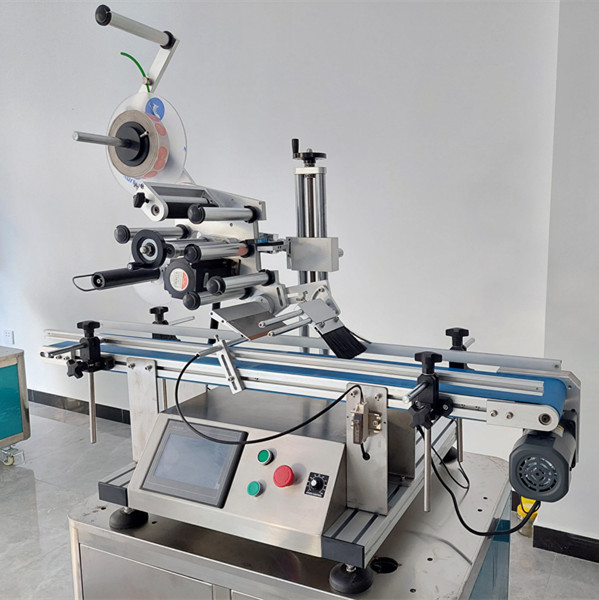

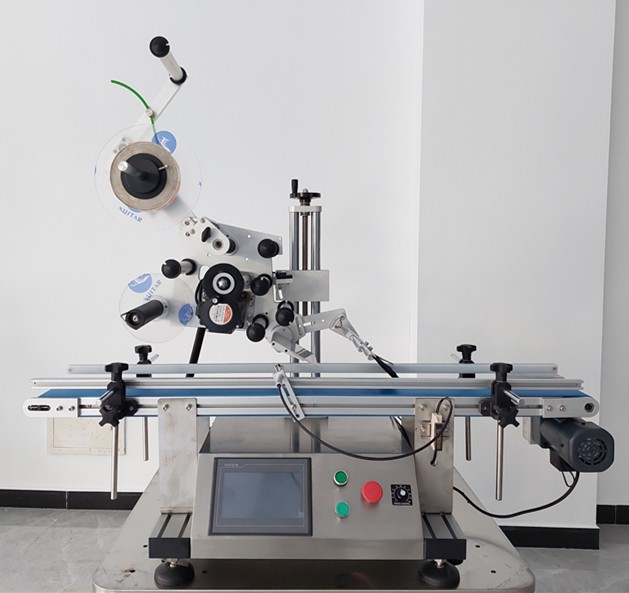

YTK-160 square bottle labeling machine with date coding machine

YTK-160 square bottle labeling machine with date coding machine

Product Item：YTK-160

Dimension(L*W*H):1200*500*650mm

Weight:130 KG

Labeling speed:20-200pcs/min(up to label object and label length)

Automatic Grade:Automatic

Description

Product Description

YTK-160 Flat Surface Labelling Machine for Plastic bag

1. The machine adopts 304 stainless steel and aluminum alloy material, durable

2. The whole machine adopts imported servo control system, make the machine running on the stable and high speed

3. Advanced affinity touch human-machine interface, easy operation, complete function, has the rich online help function

4. Use of the world's famous brands imported electrical components, ensure that the machine is stable, reliable

5.The belt conveyor, stable, reliable guarantee the delivery of materials

6. Conveying and automatic labeling speed synchronous tracking, make the adjustment is more quick and easy operation

7. Automatic sensor detection, to have any label and without the automatic stop and alarm automatic detection function, prevent leakage and waste

8. Before and after Duan Kexuan connection line, also have optional receiving platform, is advantageous for the finished product collection, sorting and packing

9. Optional configuration (ribbon printer) can print production date and batch number online, reduce the bottle packaging process, improve production efficiency

Product parameters

Model	YTK-160
Labeling speed	20-200pcs/min(up to label object and label length)
Label roll outer diameter	30-120mm
Label roll inner diameter	76mm
Label length	20-200mm
Label Width	20-180 mm
Bottle height	60-310 mm
Bottle Width	30-90 mm
Bottle length	25-300 mm
Labeling precision	±1mm(Excluding label object and tag discrepancy
Dimension	1200500650mm
Weight	135Kg

Features

1. Widely used in commodity, such as round bottles/cans/jars/tubes...
2. Adopt mature PLC control +touch screen control system technology.
3. Easy operation with reasonable price.
4. Ribbon date printer/collecting turntable is optional.
5. Best after-sale service, with the one-year warranty, life-long maintenance

The machine adopts famous brand component parts to keep the machine with high quality. but we are factory, so our price is competitive.we hope you will be our customer, and you will be satisfied with our product and service
