YTK Desktop Automatic Round Wine Glass Plastic Water Bottle Jar Label Sticker Labeling Machine

Description

Product Description

YTK-150C desktop round bottle position labeling machine for the whole high-grade stainless steel and high-grade aluminum alloy,labeling head using high-speed servo motor to ensure the accuracy and speed of labeling ;all the opto-electronic systems are also used in Germany ,Japan and China taiwan imported high-end products ,PLC with man-machine interface control , simple operation clear.

Noted:The machine need to equip with air compressor to use.

Application

Specification

Model	YTK-150C tabletop round bottle Positioning labeling machine
Voltage	AC220V/110V 50-60HZ
Power	450W
Product	Round bottle
Labeling speed	10-40 times/min
Labeling accuracy	±1mm
Min.label roll inner diameter	76mm
Max. label roll out diameter	φ260mm
Bottle diameter	Φ20-145mm
Label size	W: 10-150mm, L:0-200mm，H：0-145mm

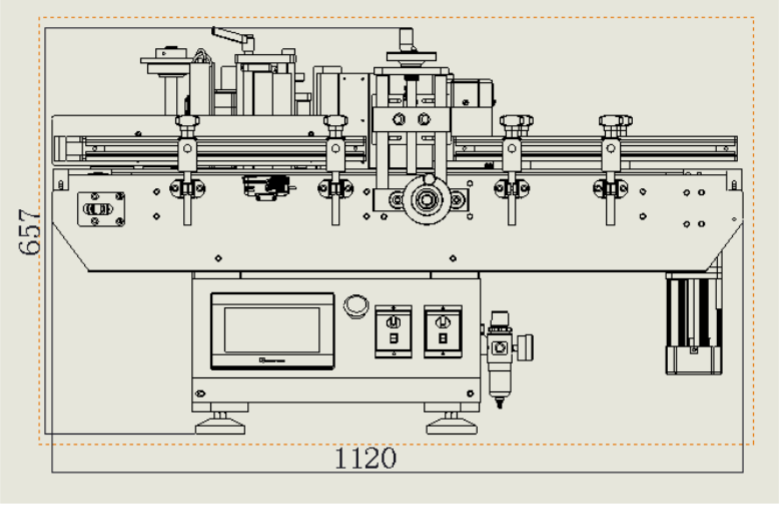

Machine size	1135*650*720mm
Machine weight	138 kg

*Noted: The above parameters for reference only.

The machine constantly upgrades parameters may cause the actual discrepancies, please understand.

Detailed Images

1. bottle clamping mechanism
This round bottle labeling is mostly suitable for labeling round object with label length that covers the bottle circumference, due to the mechanical structure building(bottle clamping mechanism) of this machine.

2. Chain Plate Type Conveyor Belt
The conveyor belt is upgraded to chain plate type,the conveying surface of the chain conveyor is flat and smooth, with low friction and a smooth transition of the material between conveying lines. The conveying capacity is large and can carry large loads. Easy cleaning.

3. Motor Brand
The stepper motor is upgraded to closed-loop and the brand is upgraded to LEADSHINE, so that the speed can be faster and the accuracy
is higher.

4. Power Supply
The power supply of the stepper motor has been changed from AC to DC, which is more stable.

Label Pulling Mechanism
The label pulling mechanism of the labeling platform has been upgraded to be easier to use, making it easier to put on the labels.
