Description
Description

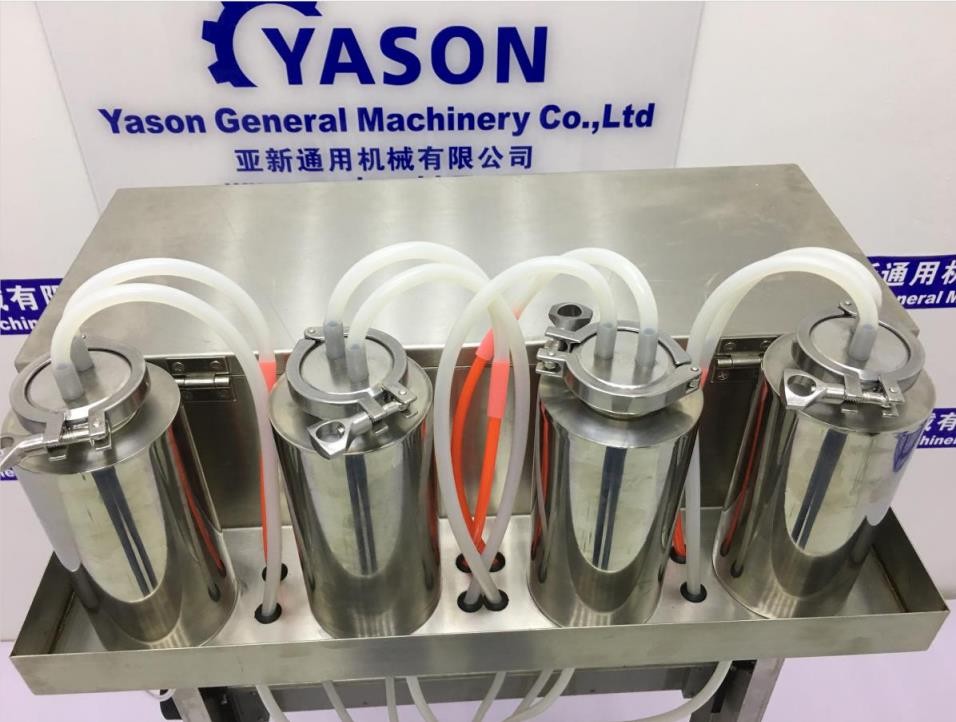

Four vacuum liquid filling machine is pure pneumatic equipment, no electricity, it is one of the most economical filling machine is particularly suitable perfumes, toilet water
and other liquid products, filling small doses, is your wiring or stand-alone use ideal choice.
DMG-ZY vacuum filling principle fixed level, regardless of the volume are the same bottle, filling level will remain the same.
The series machines easy to operate, the operator simply stuck in the bottle under the filling head or pedal to perform filling.
It is mainly power as gas source, customers must bring their own air compressor equipment.
Equipment Features
1. Filling capacity approach is to control the height of liquid
2.The shape of the bottle is not strictly required
3.Simple structure, easy operation and maintenance
4.Pure pneumatic machinery meet requirements of anti-explosion
5.Equipped with automatic drainage system
Technical parameters
Equipped with air pressure :0.5-0 .8 MPa
Level accuracy: ± 1mm
Viscosity range: maximum applicable Viscosity 20Cps (static viscosity)
Production capacity: 50 bottles / min
Bottle height: ≤ 250mm
Bottle diameter: ≤4.5mm-5mm
Adjustable level high (from the bottle) :15-50mm
Dimensions (not including reservoir bottle): 660 × 470 × 1330mm
Pumping rate: 5.5 l / sec
