Description

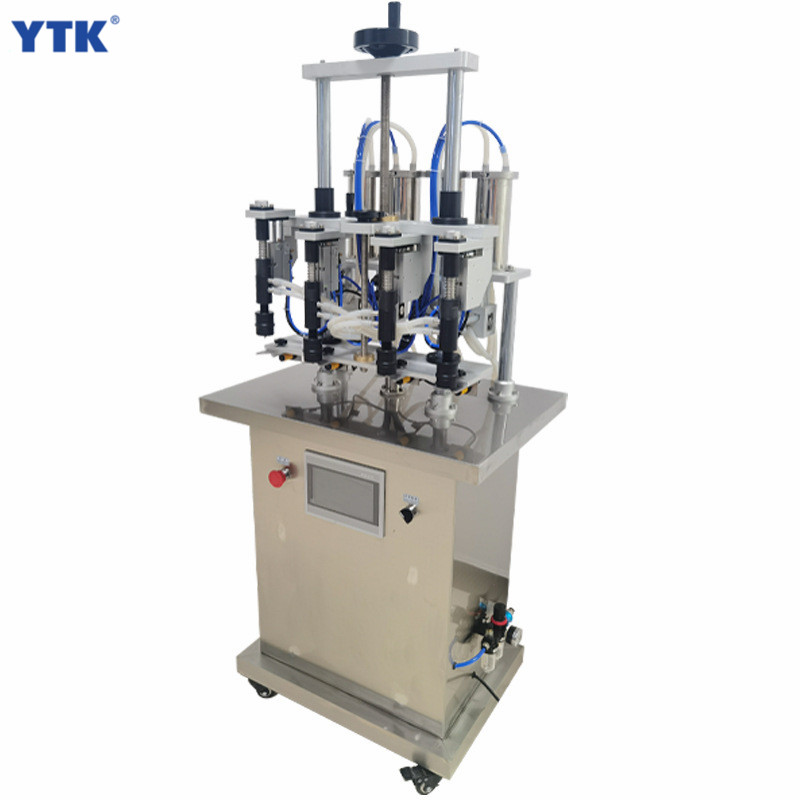

YTK-NPPF4 Semi-automatic 4 Heads Perfume Glass Bottles Filling Machine
Introduction:
The 4-head semi-automatic vacuum negative pressure filling machine is a pure pneumatic equipment. Using PLC time control, electric eye detection, no bottle filling, this machine has the characteristics of filling and constant liquid level, the filling head has a double-layer tube, one for filling, and one for pumping the excess filling material back into the raw material barrel , reducing the waste of raw materials. The filling volume is determined by the depth to which the filling head extends into the container. Therefore, the filling level will remain the same regardless of the consistent bottle volume. Especially suitable for perfume and liquid medicine.
Working Methods: The filling head is used to seal the bottle, and the vacuum generator is used to generate a vacuum for the bottle, so as to achieve vacuum filling.
Capacity: 20-40 bottles/min. (The filling speed and extraction speed can be adjusted according to the characteristics of the material)
Power supply: one-way 220V 120W
Features: Using time control, electric eye detection, no bottle filling, this machine has the characteristics of filling and constant liquid level, the filling head has a double-layer tube, one for filling, and the other for taking the excess filling material back to the raw material barrel Inside, reducing the waste of raw materials.
Control: Pure pneumatic, simple operation, stable performance, easy to disassemble and wash.

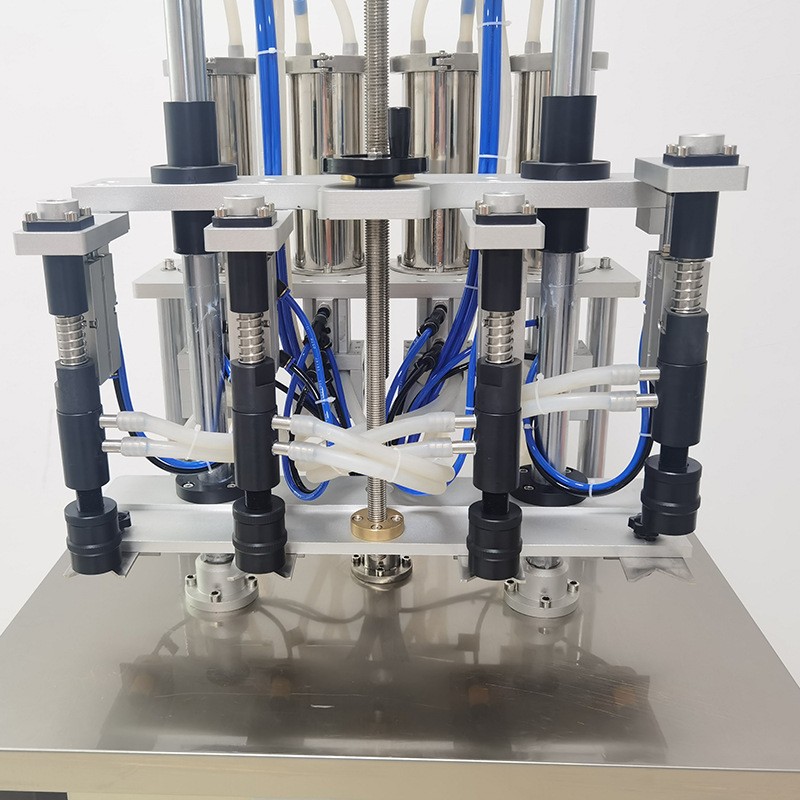

Filling head: outer diameter 8mm, inner diameter 6mm (outer layer) outer diameter 4mm, inner diameter 2mm (inner layer)
Filling accuracy: liquid level +/-1mm Piston cylinder easy: 2-1000ml Air source: After drying, the working air pressure is greater than 6kg/cm2, and the air consumption varies with the size of the output.
Weight: 40KG
Tray: Height Adjustable

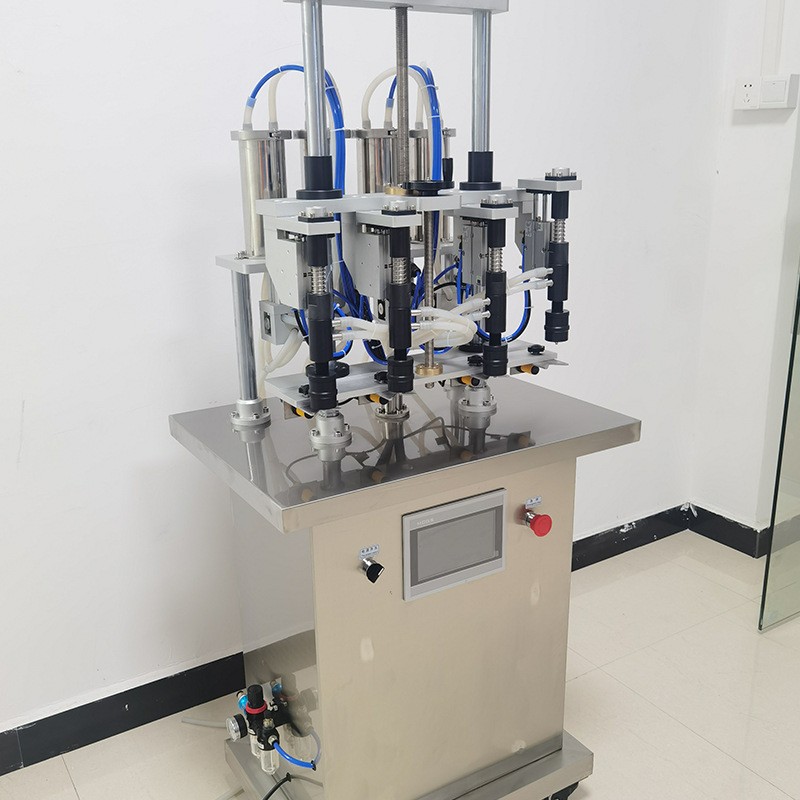

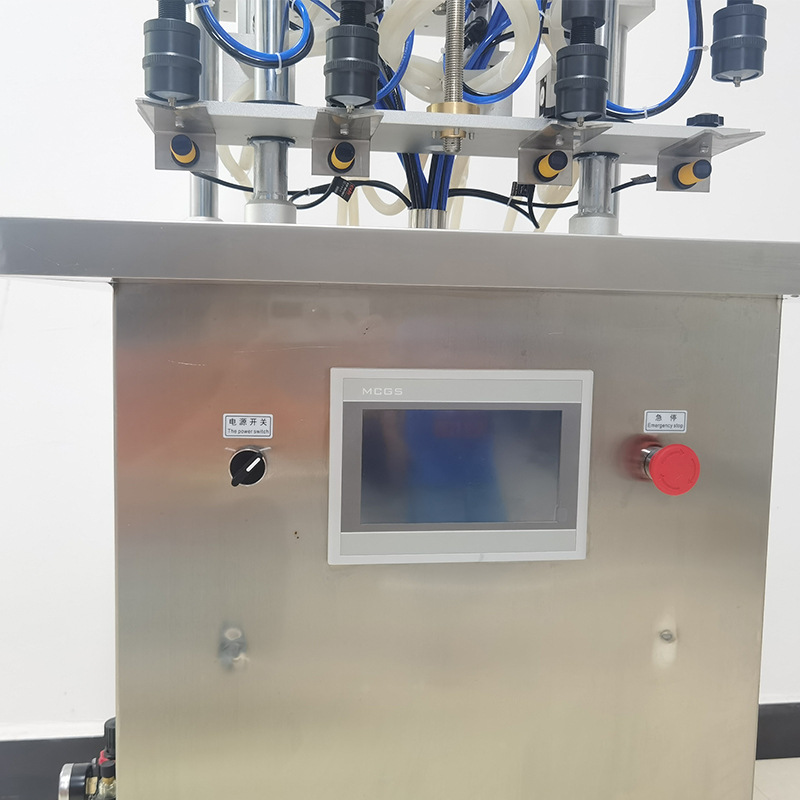

Details of Machine:
